Collaborative Document

Learn how to collaborate using a document.

Settings

  1. Login to the CometChat Dashboard.
  2. Select one of your apps.
  3. On the Extensions page add the Collaborative Document extension.

How does it work?

Initiating the session

Once you have done the above Settings, using the Collaborative Document extension is pretty straight-forward. As an initiator, you only have to create a session. The extension will handle the following for you:

  1. Provide you with a link for collaboration.
  2. Forward the link as an invitation to the receivers.

You can initiate this extension in either one-on-one chat or a group chat. The session can be started by simply submitting the receiver (uid/guid) and receiverType (user/group).

The above 2 details can be submitted using the callExtension method provided by our SDKs.

CometChat.callExtension("document", "POST", "v1/create", {
    "receiver": "UID/GUID",
    "receiverType": "user/group"
}).then(response => {
    // Response with document url
}).catch(error => {
    // Some error occured
});
import org.json.simple.JSONObject;

JSONObject body=new JSONObject();
body.put("receiverType", "user/group");
body.put("receiver", "uid/guid");

CometChat.callExtension("document", "POST", "/v1/create", body,
    new CometChat.CallbackListener<JSONObject>() {
    @Override
    public void onSuccess(JSONObject responseObject) {
        // The document link to join as an initiator.
    }

    @Override
    public void onError(CometChatException e) {
        // Some error occured.
    }
});
CometChat.callExtension(slug: "document", type: .post, endPoint: "v1/create",
body: ["receiverType":"user/group", "receiver":"uid/guid"], onSuccess: { (response) in
        // Success response
      }) { (error) in
        // Some error occured
      }

Receiving the details

As an initiator

You will be receiving the document_url of the session in the success callback of the callExtension method as shown in the above code sample.

As a collaborator

The receiver (can be a user or group) will get a message with the following properties:

  1. category: custom
  2. type: extension_document

You have to implement a listener to get the message. Please check our documentation on how to Receive Messages under the Messages section of the SDK of your choice.

The metadata section will have the details about the document_url.

"metadata": {
    "@injected": {
      "extensions": {
        "document": {
          "document_url": "https://document.cometchat.io/p/uniqdocid"
        }
      }
    }
}

You can make use of the getMetadata() method for extracting the details. Refer the code samples below:

if (metadata != null) {
  var injectedObject = metadata["@injected"];
  if (injectedObject != null && injectedObject.hasOwnProperty("extensions")) {
    var extensionsObject = injectedObject["extensions"];
    if (
      extensionsObject != null &&
      extensionsObject.hasOwnProperty("document")
    ) {
      var documentExtension = extensionsObject["document"];
      var document_url = documentExtension["document_url"];
    }
  }
}
JSONObject metadata = message.getMetadata();
if (metadata != null) {
  JSONObject injectedObject = metadata.getJSONObject("@injected");
  if (injectedObject != null && injectedObject.has("extensions")) {
    JSONObject extensionsObject = injectedObject.getJSONObject("extensions");
    if (extensionsObject != null && extensionsObject.has("document"))
        {
          JSONObject documentObj = extensionsObject.getJSONObject("document");
          String board_url = documentObj.getString("document_url");
        }
    }
}
if (metadata != null) {
  if (metadata.has("@injected")) {
   val injectedJSONObject = metadata.getJSONObject("@injected")
   if (injectedJSONObject != null && injectedJSONObject.has("extensions")) {
   val extensionsObject = injectedJSONObject.getJSONObject("extensions")

   if (extensionsObject != null && extensionsObject.has("document")) {
   val documentObj = extensionsObject.getJSONObject("document")
   val document_url = documentObj.getString("document_url")
         }
       }
     }
   }
let textMessage = message as? TextMessage
var metadata : [String : Any]? = textMessage.metaData
if metadata != nil {

    var injectedObject : [String : Any]? = (metadata?["@injected"] as? [String : Any])!

    if injectedObject != nil && (injectedObject!["extensions"] != nil){

      var extensionsObject : [String : Any]? = injectedObject?["extensions"] as? [String : Any]

      if extensionsObject != nil && extensionsObject?["document"] != nil             {
        var documentObj = extensionsObject?["document"] as! [String :  Any]

        let document_url = documentObj["document_url"] as! String
      }
   }
}

The metadata will also contain incrementUnreadCount with value as true. This will be useful for incrementing the unread count every time a Collaborative Document's custom message is received.

Start collaborating

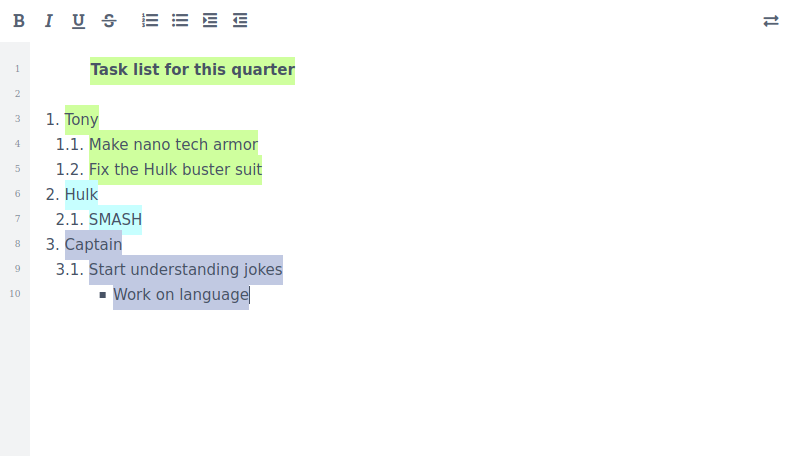

Collaborative documentCollaborative document

Collaborative document

The Collaborative document has the following editing features:

  1. Bold
  2. Italic
  3. Underline
  4. Strikethrough
  5. Numbered list
  6. Bulleted list
  7. Indent and Outdent

You can export your document as:

  1. Etherpad
  2. HTML
  3. Plain text
