UI Components

UI Components are building blocks of the UI Kit. UI Components are a set of custom classes specially designed to build a rich chat app. There are different UI Components available in the
UI Kit Library.

1. CometChatUI

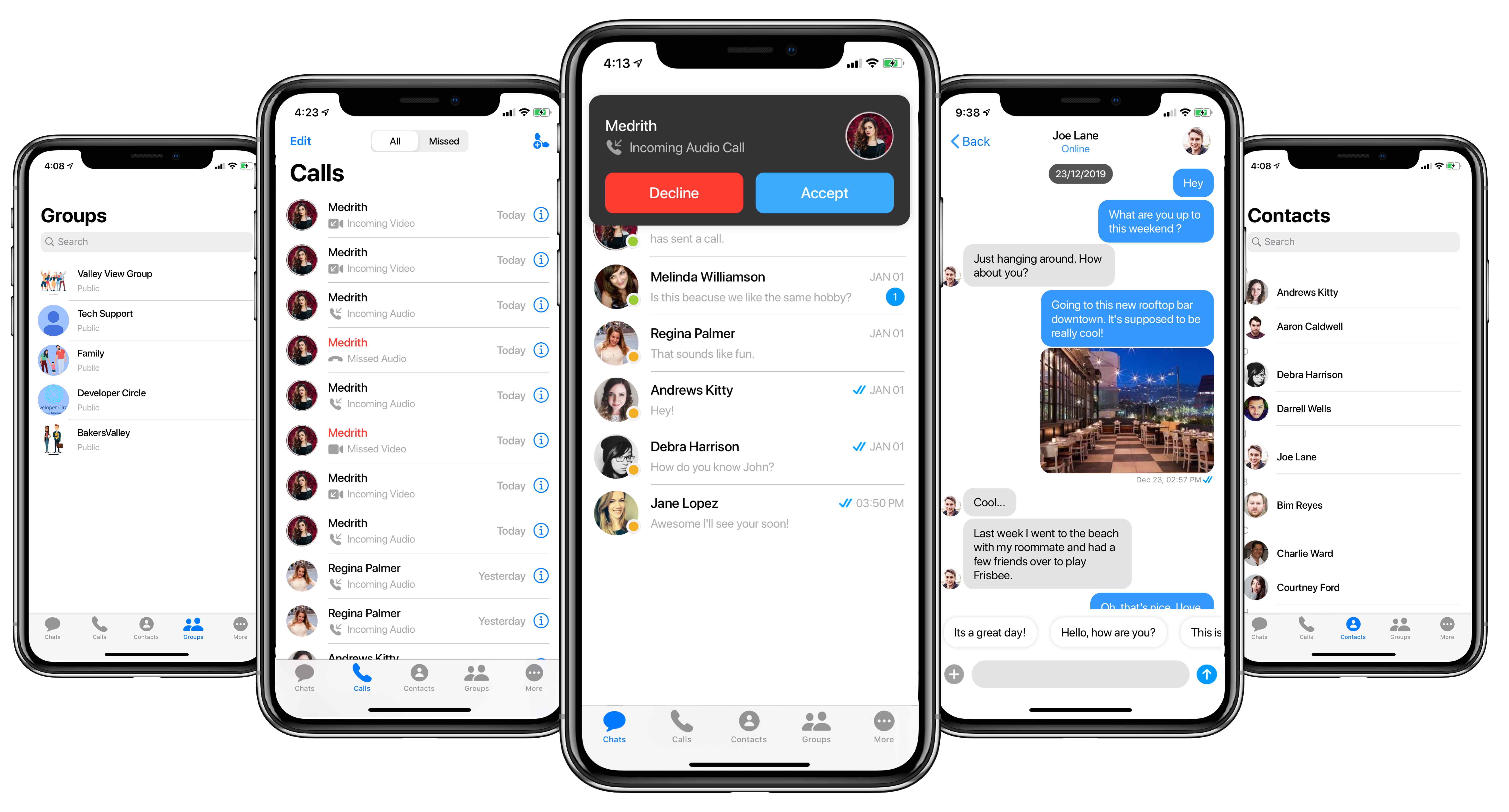

CometChatUI is an option to launch a fully functional chat application using the UI Kit. In CometChatUI all the UI Components are interlinked and work together to launch a fully functional chat on your mobile application.

DispatchQueue.main.async {
let cometChatUI = CometChatUI()
cometChatUI.setup(withStyle: .fullScreen)
self.present(cometChatUI, animated: true, completion: nil)
}

2. CometChatConversationList

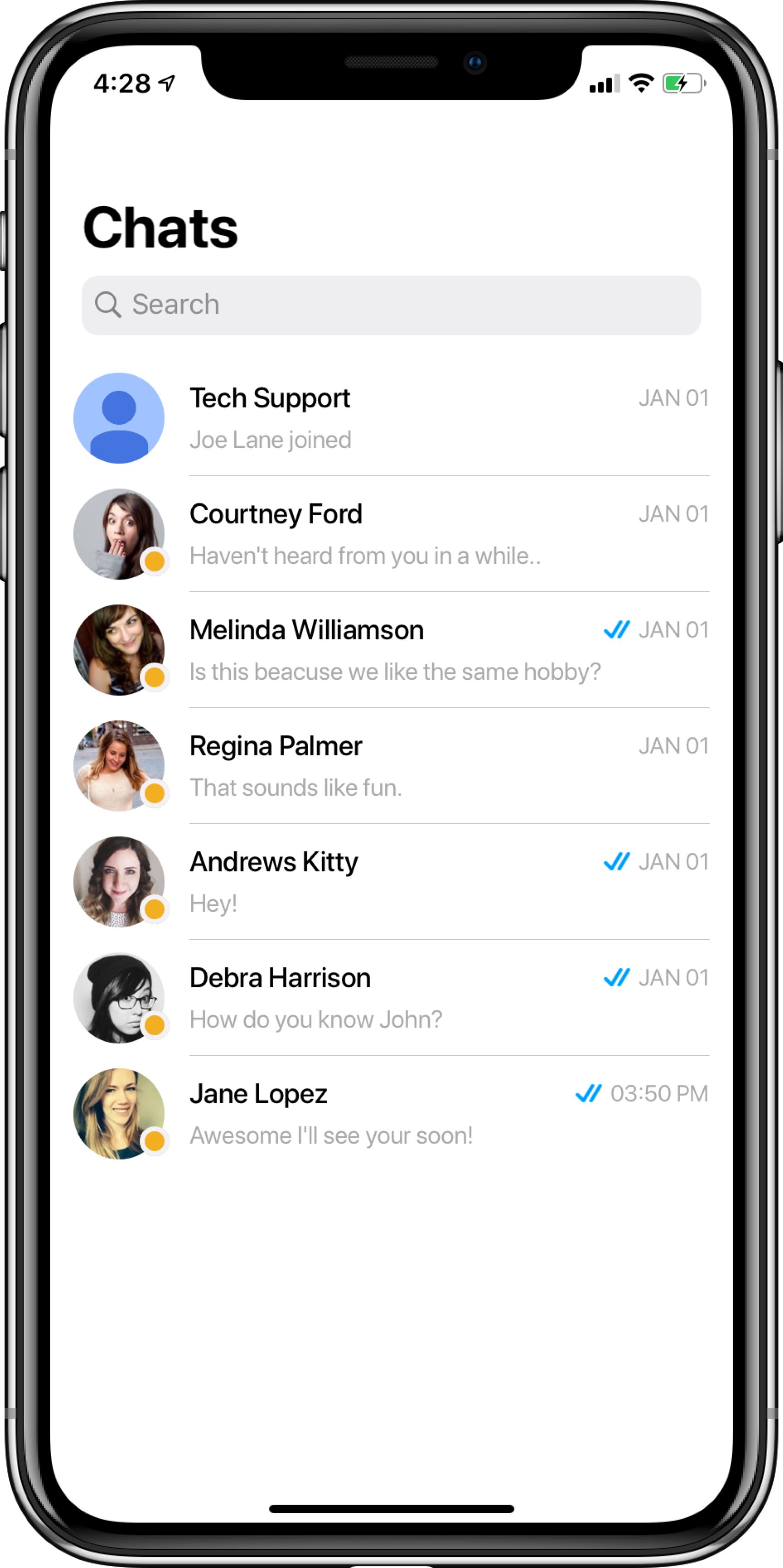

The CometChatConversationList is a view controller with a list of recent conversations. The view controller has all the necessary delegates and methods.

You can present this screen using two methods.

Launch Conversation List:


let conversationList = CometChatConversationList()
let navigationController = UINavigationController(rootViewController:conversationList)
conversationList.set(title:"Chats", mode: .automatic)
self.present(navigationController, animated:true, completion:nil)

Assign Conversation List to View Controller:

You can use this by subclassing UIViewController as CometChatConversationList as shown below:

📘

Note

To assign a CometChatConversationList to view controller make sure that the Navigation controller is attached properly.

import CometChatPro

class viewController: CometChatConversationList {

override func viewDidLoad() {
      super.viewDidLoad()
      self.delegate = self
    }
}

Also, you can perform an action on tap on the conversation by adding ConversationListDelegate in the app's view controller as shown below:

extension viewController: ConversationListDelegate {

func didSelectConversationAtIndexPath(conversation: Conversation, indexPath: IndexPath){
        //Do Stuff
    }
}

3. CometChatCallsList

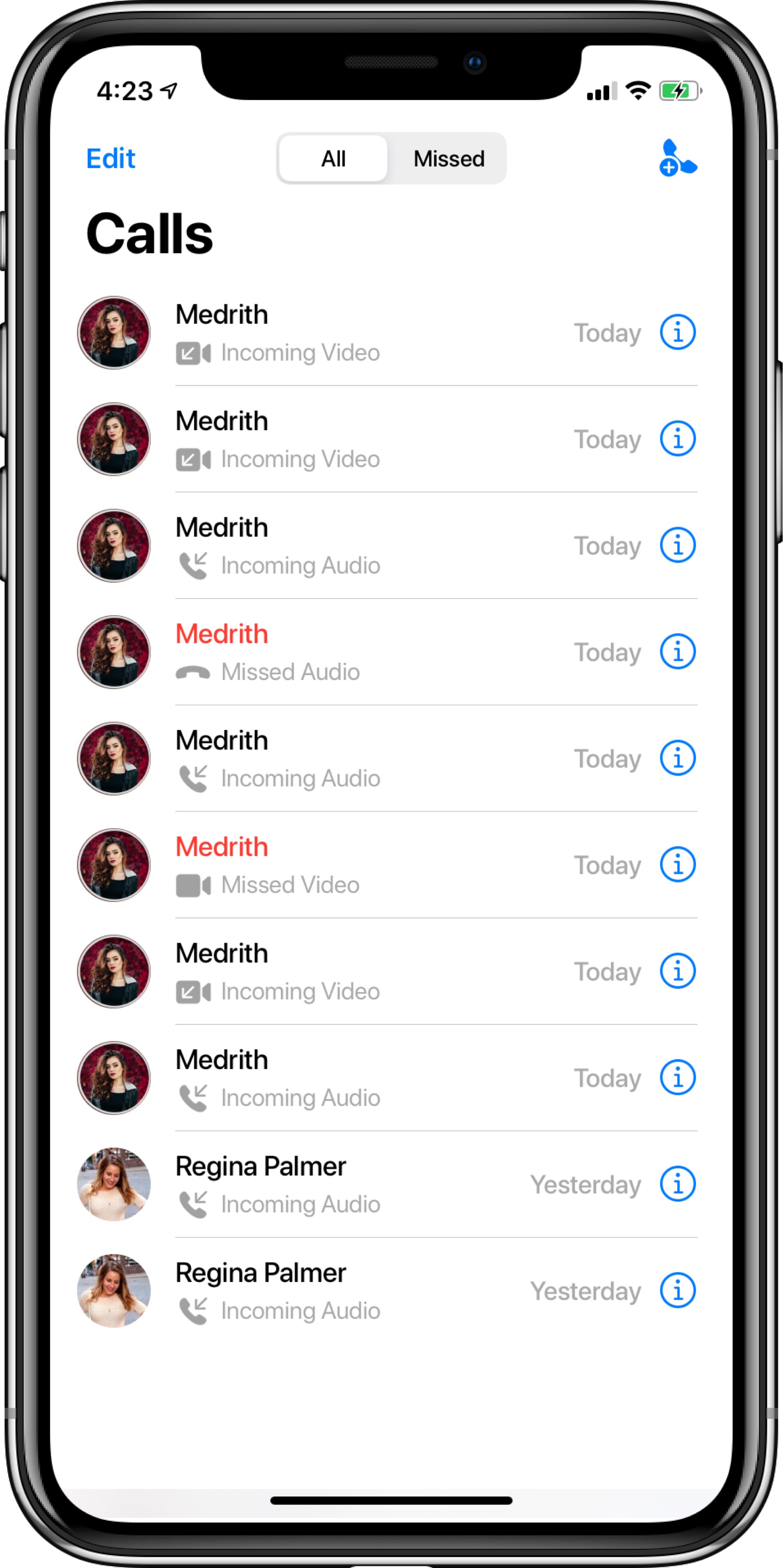

The CometChatCallsList is a view controller with a list of recent calls. The view controller has all the necessary delegates and methods.

You can present this screen using two methods.

Launch Calls List:


let callList = CometChatCallsList()
let navigationController = UINavigationController(rootViewController:callList)
callList.set(title:"Calls", mode: .automatic)
self.present(navigationController, animated:true, completion:nil)

Assign Call List to View Controller:

You can use this by subclassing UIViewController as CometChatCallsList as shown below:

📘

Note

To assign a CometChatCallsList to view controller make sure that the Navigation controller is attached properly.

import CometChatPro

class viewController: CometChatCallsList {

override func viewDidLoad() {
      super.viewDidLoad()
      self.delegate = self
    }
}

Also, you can perform an action on tap on the call by adding CallsListDelegate in the app's view controller as shown below:

extension viewController: CallsListDelegate {

func didSelectCallsAtIndexPath(call: BaseMessage, indexPath: IndexPath){
        //Do Stuff
    }
}

4. CometChatUserList

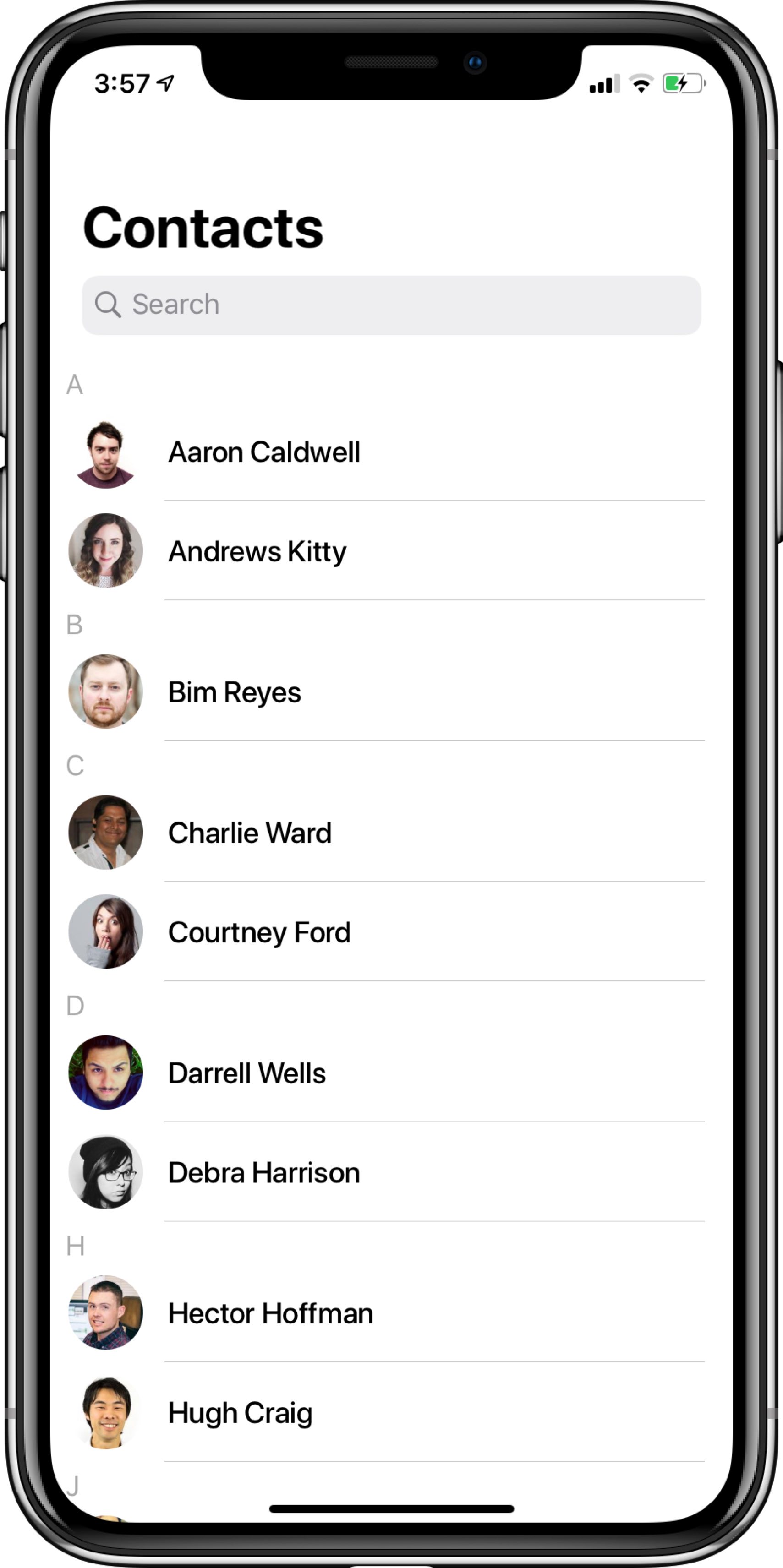

The CometChatUserList is a view controller with a list of users. The view controller has all the necessary delegates and methods.

You can present this screen using two methods.

Launch User List:


let userList = CometChatUserList()
let navigationController = UINavigationController(rootViewController:userList)
userList.set(title:"Contacts", mode: .automatic)
self.present(navigationController, animated:true, completion:nil)

Assign User List to View Controller:

You can use this by subclassing UIViewController as CometChatUserList as shown below:

📘

Note:

To assign a CometChatUserList to view controller make sure that the Navigation controller is attached properly.

import CometChatPro

class viewController: CometChatUserList {

override func viewDidLoad() {
  super.viewDidLoad()
  self.delegate = self
  }
}

Also, you can perform an action on tap on the user by adding UserListDelegate in the app's view controller as shown below:

extension viewController: UserListDelegate {

func didSelectUserAtIndexPath(user: User, indexPath: IndexPath) {
        //Do Stuff
    }
}

5. CometChatGroupList

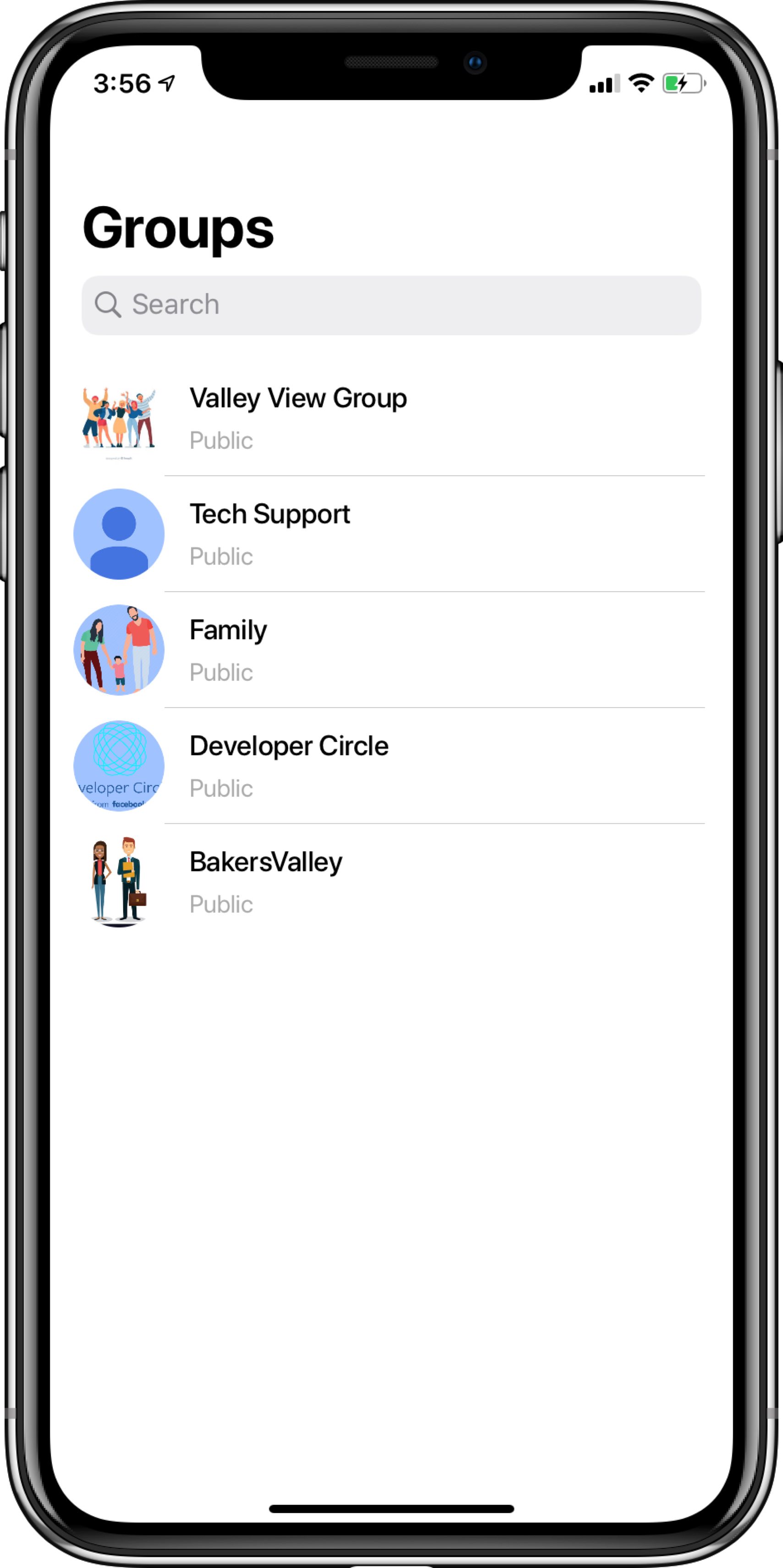

The CometChatGroupList is a view controller with a list of groups. The view controller has all the necessary delegates and methods.

You can present this screen using two methods.

Launch Group List:


let groupList = CometChatGroupList()
let navigationController = UINavigationController(rootViewController:groupList)
groupList.set(title:"Groups", mode: .automatic)
self.present(navigationController, animated:true, completion:nil)

Assign Group List to View Controller:

You can use this by subclassing UIViewController as CometChatGroupList as shown below:

📘

Note

To assign a CometChatGroupList to view controller make sure that the Navigation controller is attached properly.

import CometChatPro

class viewController: CometChatGroupList {

override func viewDidLoad() {
      super.viewDidLoad()
      self.delegate = self
    }
}

Also, you can perform an action on tap on the group by adding GroupListDelegate in the app's view controller as shown below:

extension viewController: GroupListDelegate {

func didSelectGroupAtIndexPath(group: Group, indexPath: IndexPath)
        //Do Stuff
    }
}

6. CometChatMessageList

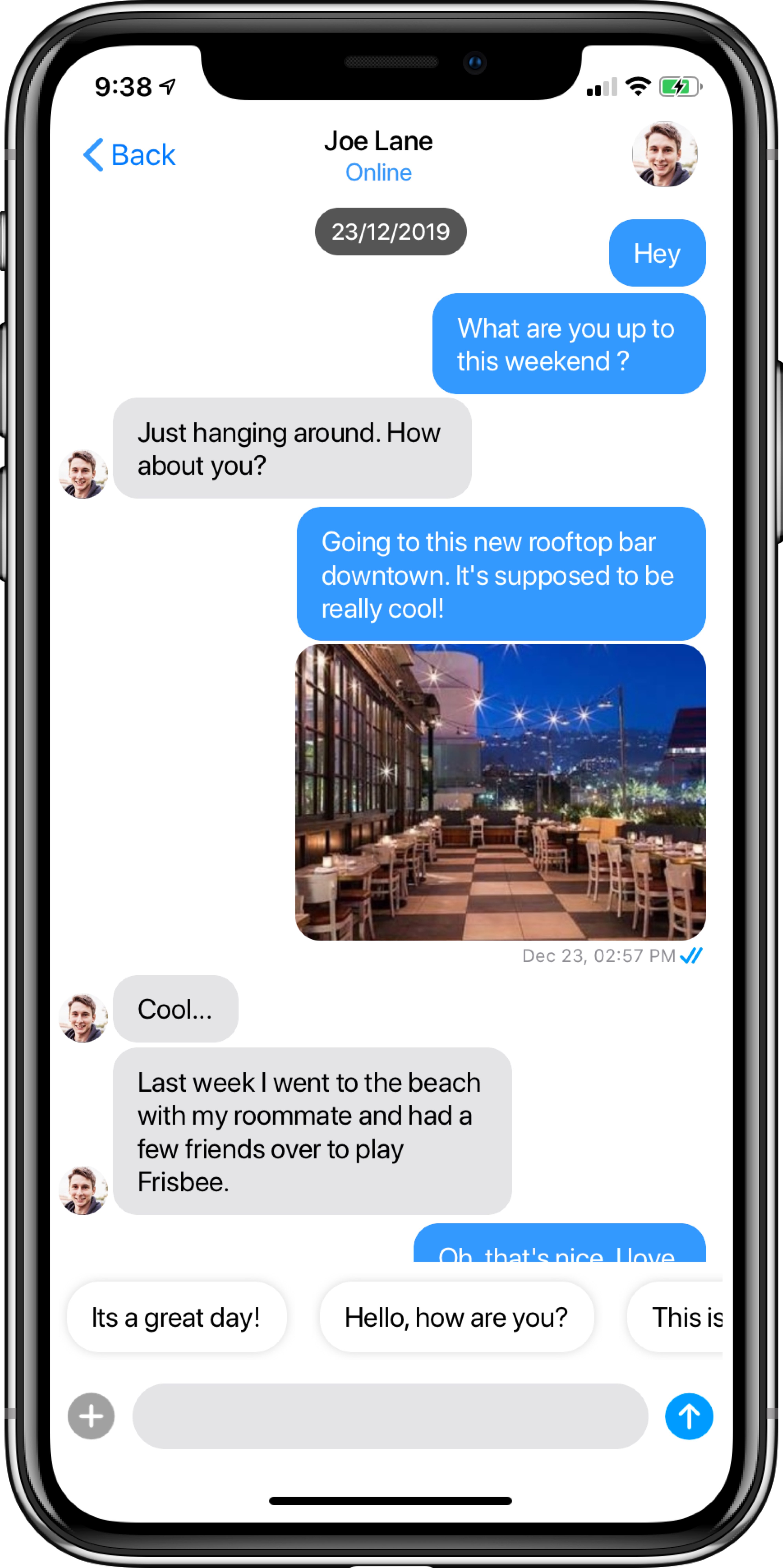

The CometChatMessageList is a view controller with a list of messages for a particular user or group. The view controller has all the necessary delegates and methods.

CometChatMessageList requires User or Group object to work properly.

📘

To retrieve the User or Group object you can call CometChat.getUser() or CometChat.getGroup().

You can present this screen using two methods.

Launch Message List:

`
let messageList = CometChatMessageList()
let navigationController = UINavigationController(rootViewController:messageList)
messageList.set(conversationWith: user, type: .user)
self.present(navigationController, animated:true, completion:nil)

Assign Message List to View Controller:

You can use this by subclassing UIViewController as CometChatMessageList as shown below:

📘

Note

To assign a CometChatMessageList to view controller make sure that the Navigation controller is attached properly.

import CometChatPro

class viewController: CometChatMessageList {

override func viewDidLoad() {
      super.viewDidLoad()
      set(conversationWith: user, type: .user)
    }
}

7. CometChatUserProfile

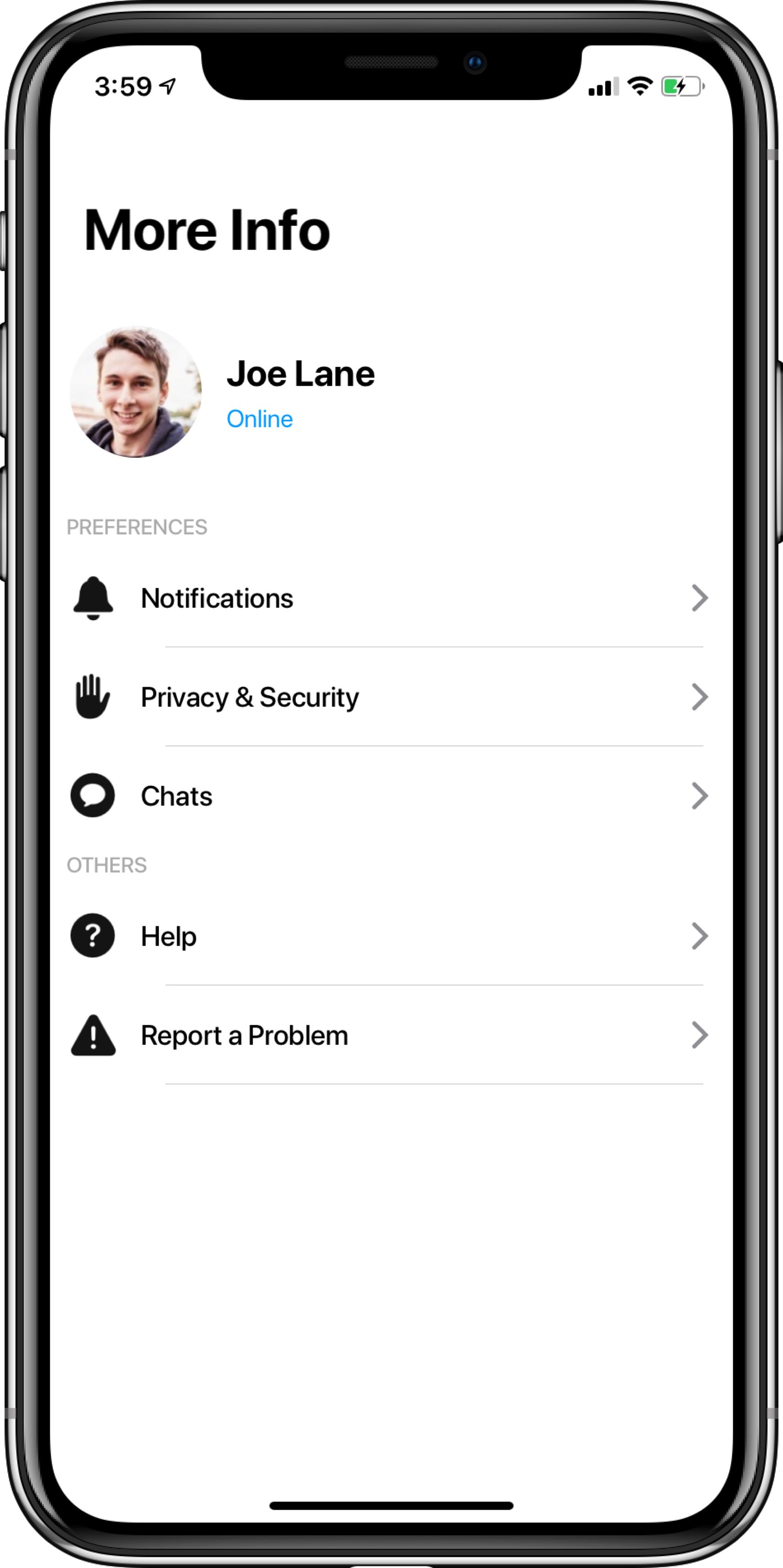

The CometChatUserProfile is a view controller with user information and a list of dummy cells for settings of the app which the developer can use in his app.

You can present this screen using two methods.

Launch User Profile :


let userProfile = CometChatUserProfile()
let navigationController = UINavigationController(rootViewController:userProfile)
userProfile.set(title:"More", mode: .automatic)
self.present(navigationController, animated:true, completion:nil)

Assign UserProfile to View Controller:

You can use this by subclassing UIViewController as CometChatUserProfile as shown below:

📘

Note

To assign a CometChatUserProfile to view controller make sure that the Navigation controller is attached properly.

import CometChatPro

class viewController: CometChatUserProfile {

override func viewDidLoad() {
      super.viewDidLoad()

    }
}
