Angular UI Kit

Learn a quick integration of text chat and voice/video calling features for your application

The CometChat Angular UI Kit is developed to keep developers in mind and aims to reduce development efforts significantly.


Improvisations in V3.0

Faster connection & response times
Higher rate limits
Supports up to 100K users in a group
Unlimited groups
Support for Transient Messages
Real-time user & group members count
And more!

The UI Kit’s customizable UI components simplify the process of integrating text chat and voice/video calling features to your website or mobile application in a few minutes.

I want to checkout Angular UI Kit

Follow the steps mentioned in the file.

Kindly, click on below button to download our Angular UI Kit.

Angular UI Kit

View on Github

I want to explore the sample app

Kindly, click on below button to download our Angular Sample App.

Download sample app

View on Github

Installation Steps


Before you begin, ensure you have met the following requirements:

  1. A text editor. (e.g. Visual Studio Code, Notepad++, Sublime Text, Atom, or VIM)

  2. Node

  3. npm

  4. Angular CLI

npm install -g @angular/cli

Installing Angular UI Kit

Setup 🔧

  • To install the Angular UI Kit, you need to first register on the CometChat Dashboard. Click here to sign up (
  1. Get Your Application Keys 🔑
  • Create a new app



Please follow the steps provided in the Key concepts guide to create V3 apps before you proceed

  • Head over to the QuickStart or API & Auth Keys section and note the App ID, Auth Key, and Region.
  1. Add the CometChat Dependency
npm install @cometchat-pro/[email protected] --save

Configure CometChat inside your app

  1. Import CometChat SDK
import { CometChat } from "@cometchat-pro/chat";
  1. Initialize CometChat 🌟
    The init() method initializes the settings required for CometChat. We suggest calling the init() method on app startup, preferably in the onCreate() method of the Application class
const appID = "APP_ID";
const region = "REGION";
const appSetting = new CometChat.AppSettingsBuilder()
CometChat.init(appID, appSetting).then(
  () => {
    console.log("Initialization completed successfully");
    // You can now call login function.
  (error) => {
    console.log("Initialization failed with error:", error);
    // Check the reason for error and take appropriate action.



Replace APP_ID and REGION with your CometChat App ID and Region in the above code

  1. Login your user 👤
    This method takes UID and Auth Key as input parameters and returns the User object containing all the information of the logged-in user
const authKey = "AUTH_KEY";
const uid = "SUPERHERO1";

CometChat.login(uid, authKey).then(
  (user) => {
    console.log("Login Successful:", { user });
  (error) => {
    console.log("Login failed with exception:", { error });



  • Replace AUTH_KEY with your CometChat Auth Key in the above code
  • We have set up 5 users for testing having UIDs: SUPERHERO1, SUPERHERO2, SUPERHERO3, SUPERHERO4, and SUPERHERO5.

Add UI Kit to your project

  1. Clone the repository
git clone -b v3

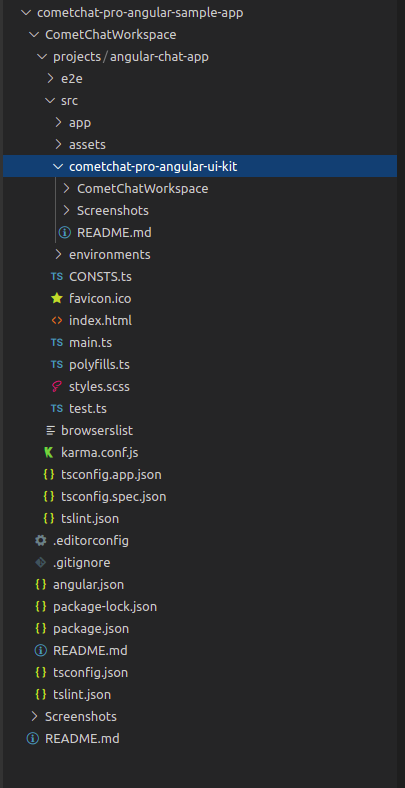

  1. Copy the cloned repository into your project src folder.
  1. Import the Components in the respective module where the component will be used.
  2. Install @ctrl/ngx-emoji-mart according to the angular version of your project @ctrl/ngx-emoji-mart
  3. Add these styles to your angular.json
"styles": [

4.Wrap all the selectors in a div with class=responsive as shown in the next step

Launch CometChat

CometChatUI is an option to launch a fully functional chat application using the UI Kit. In UI Kit all the UI Components are interlinked and work together to launch a fully functional chat on your website/application.

Import the CometChatUI in your project file

import { CometChatUI } from "../components/CometChatUI/CometChat/cometchat-ui.module";

#Use this selector in your html file

<div class="responsive">

Checkout our sample app

Visit our Angular sample app repo to run the Angular sample app.
