Custom CSS

Custom CSS helps you to customize the call screen of CometChat which comes with default settings.

  • You might want to reposition the calling containers and
  • Change the names of participants in the call with different fonts and sizes.
  • Change the background color of the call screen or
  • Change the height and width of the participants' call screen

You now have access to the custom CSS classes which help you change accordingly to suit your need. Please go through the examples below.

Example

Let's add all the classes that we need to pass inside the calling component in a variable CSS.

let CSS=`
.custom-main-container{
    border: 1px solid #F0F0F0;
}
.custom--tile-main-call-container{
    border: 2px solid #6929CA;
}
.custom-tile-main-video-container{
    border: 2px solid yellow;
}
.custom-spotlight-main-video-container{
    border: 2px solid orange;
}
.custom-tile-list-container{
    border: 2px solid #FFFFFF;
}
.custom-tile-container{
    border: 2px solid pink;
}
.custom-local-spotlight-stream-container{
    border: 2px solid #FFFFFF;
}
.custom-button-bar{
    border: 2px solid red;
}
.custom-button {
    border: 2px solid green;
}
.custom-grid-container{
    background-color: blue;
}
.custom-name{
    color:grey;
    font-weight:bold;
    border: 1px solid #F0F0F0;
}`

You need to pass the CSS string in CallSettings in setCustomCSS.

var callsettings = new CometChat.CallSettingsBuilder()
.setSessionID(sessionID)
.setIsAudioOnlyCall(false)
.showEndCallButton(true)
.enableDefaultLayout(true)
.showScreenShareButton(true)
.showMuteAudioButton(true)
.showEndCallButton(true)
.showScreenShareButton(true)
.showPauseVideoButton(true)
.setCustomCSS(CSS). //HERE
.build();

Property

Description

Type

Value

setCustomCSS

Option to update the custom css for call screen

String

CSS

Common CSS Classes

There are a few common classes used for different modes in the call screen

  1. custom-main-container

    This is the most outer component of the calling component.

//Default value is
 {
  height: 100vh;
  width: 100vw;
}
  1. custom--tile-main-call-container

    This the Container of the main video and till list or a local stream component.

#Default style
 {
  height: 100%;
  display: flex;
  flex: 1;
  flex-direction: row; //if opened in mobile and in portrait mode its value is column
  justify-content: flex-start;
}

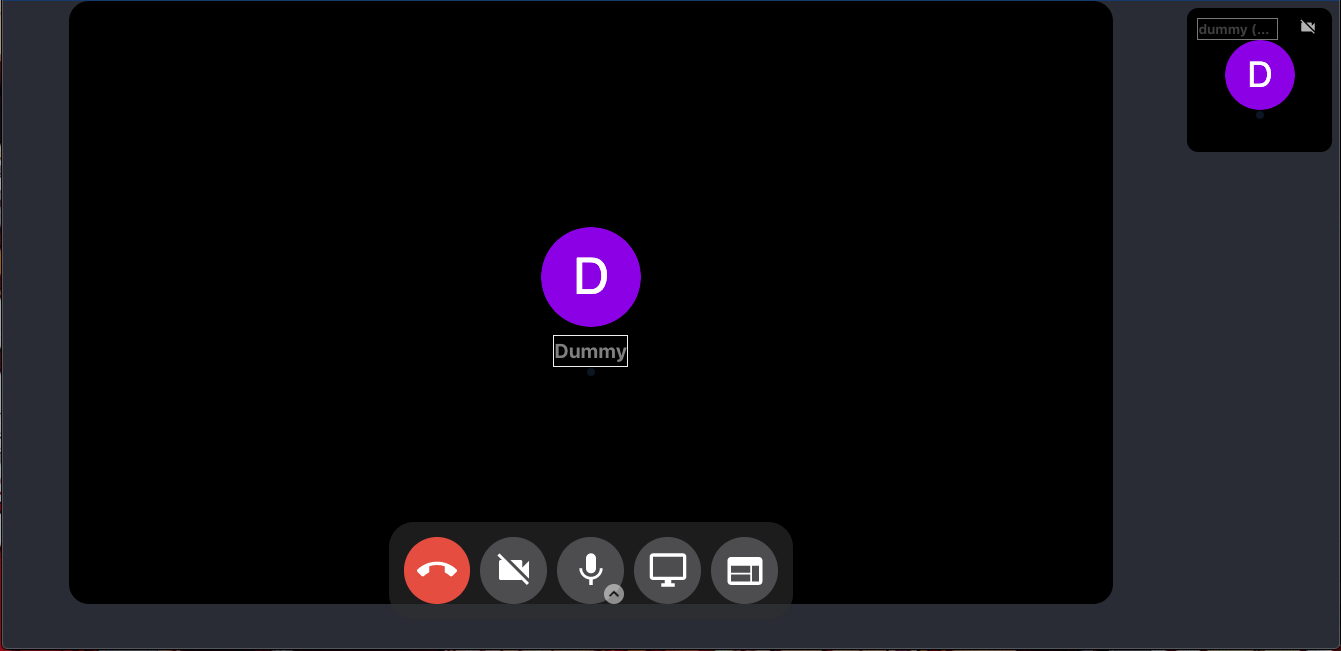

  1. custom-name

    This class is passed in user name text in all components.

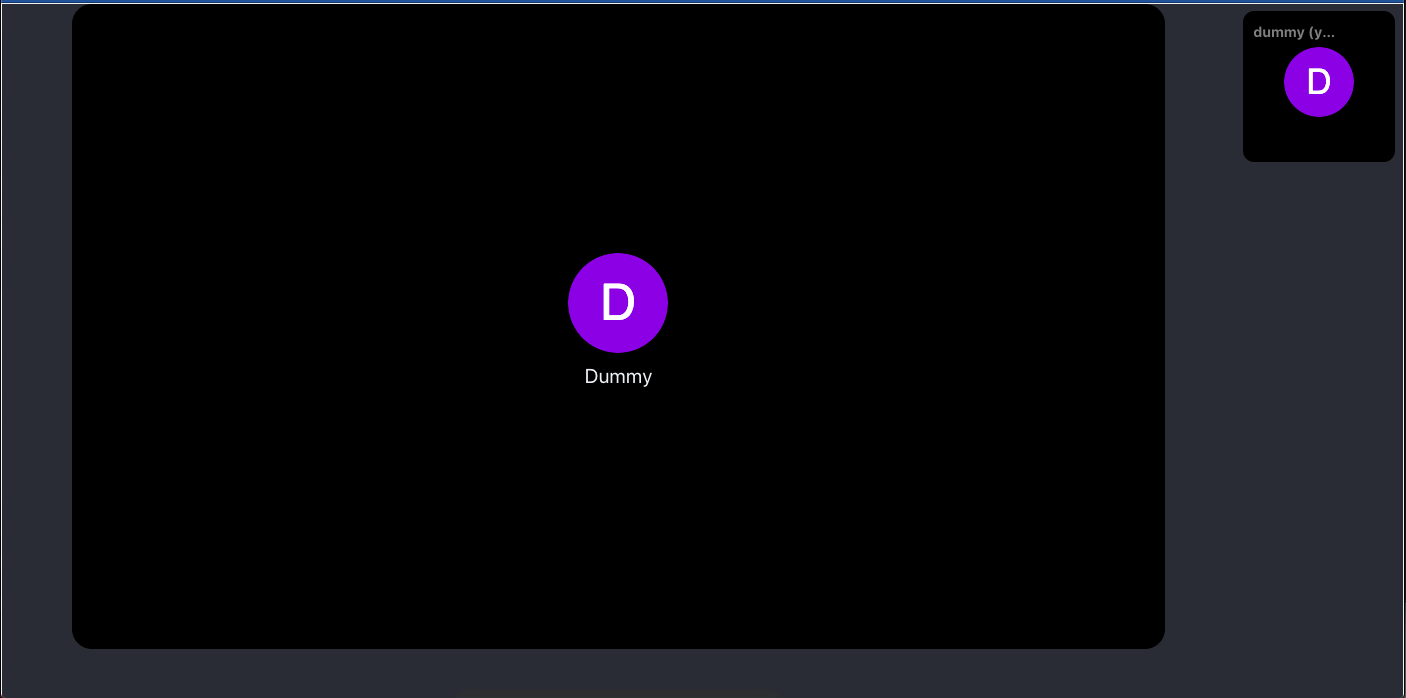

Tile mode

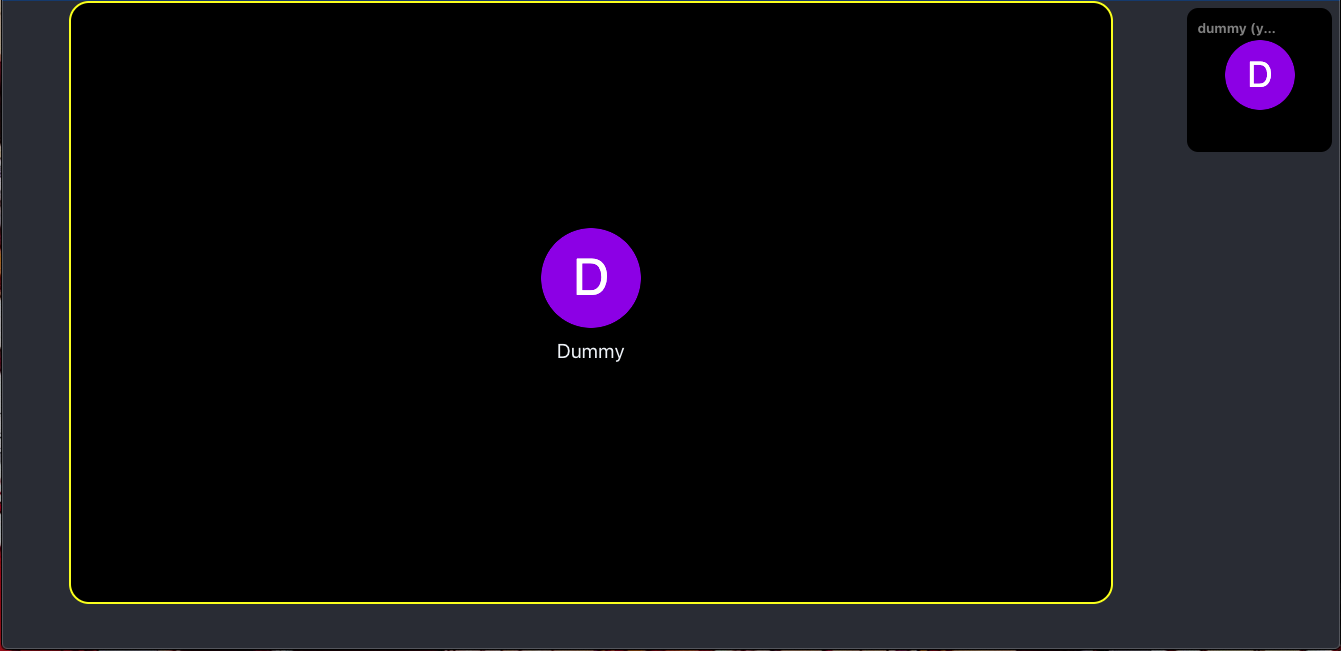

  1. custom-tile-main-video-container
    This is the main video container. It is the div that has the main speaker video, for tile mode.
#Default value
{
  display: flex;
  flex: 1 1;
  height: 93%;
  margin-left: 5%;
  margin-right: 5%;
  margin-bottom: 5%;
  position: relative;
  justify-content: center;
  background-color: #000;
  border-radius: 20px;
}

#Default CSS for mobile in portrait mode
{
  display: flex;
  width: 90%;
  height: 63%;
  margin-left: 5%;
  margin-right: 5%;
  margin-bottom: 5%;
  margin-top: 5%;
  position: relative;
  justify-content: center;
  background-color: #000;
}

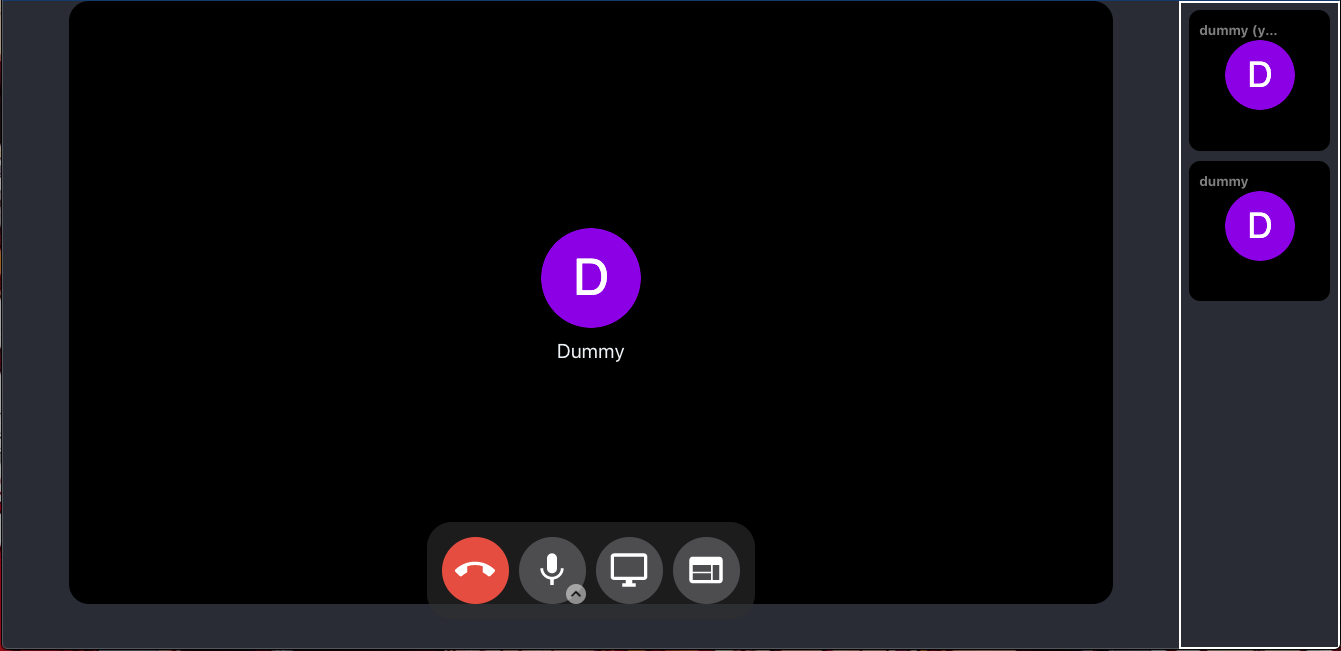

  1. custom-tile-list-container
    This is the div that contains a list of tiles.
#Default value
{
  width: 12%;
  padding-left: 0%;
  display: flex;
  align-items: center;
  flex-direction: column;
  padding-top: 0.5%;
  overflow-y: auto;
}

#Default CSS for mobile in portrait mode
{
  width: 100vw;
  height: 20%;
  padding-left: 1%;
  padding-right: 1%;
  padding-top: 0.5%;
  display: flex;
  align-items: center;
  flex-direction: row;
  overflow-x: auto;
}

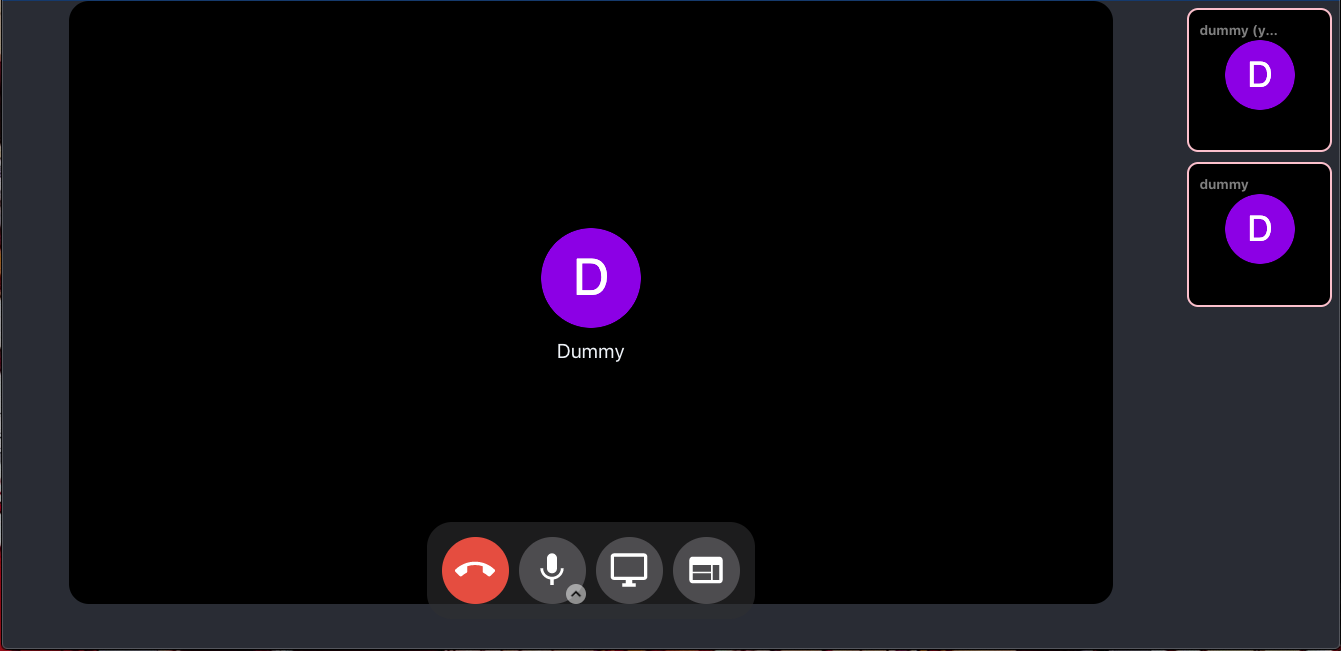

  1. custom-tile-container
    The div is used for tile video.
Default value
{
  width: 90%;
  position: relative;
  aspect-ratio: 1;
  background-color: #000000;
  margin-bottom: 10px;
  border-radius: 0.7rem;
}

Default CSS for mobile
{
  width: 15vh;
  position: relative;
  margin-left: 10px;
}

SpotLight Mode

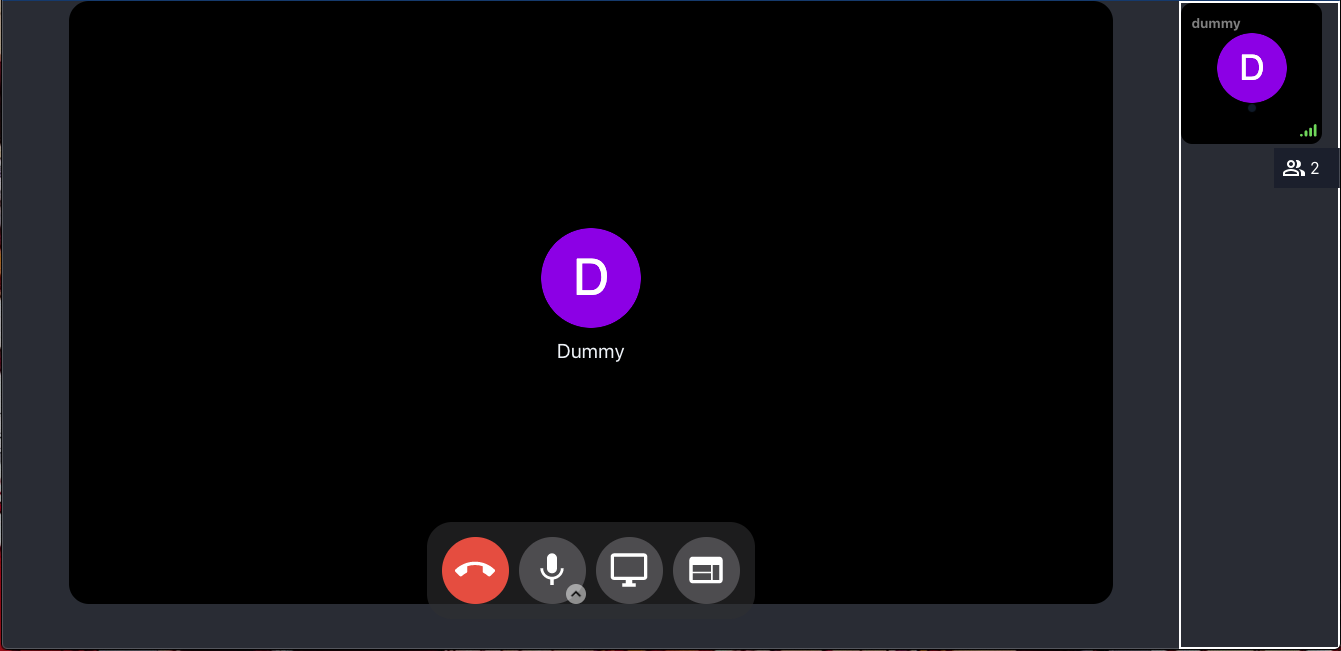

  1. custom-spotlight-main-video-container
    This is the main video container it the div which has the main speaker video, for spotlight mode.
#Default value
{
  width: 12%;
  padding-left: 0%;
  display: flex;
  align-items: center;
  flex-direction: column;
  padding-top: 0.5%;
  overflow-y: auto;
}

#Default CSS for mobile in portrait mode
{
  width: 100vw;
  height: 20%;
  padding-left: 1%;
  padding-right: 1%;
  padding-top: 0.5%;
  display: flex;
  align-items: center;
  flex-direction: row;
  overflow-x: auto;
}
  1. custom-local-spotlight-stream-container
    This div contains the local video of a user in spotlight mode.
Default value
{
  width: 12vw;
}

Bottom Buttons

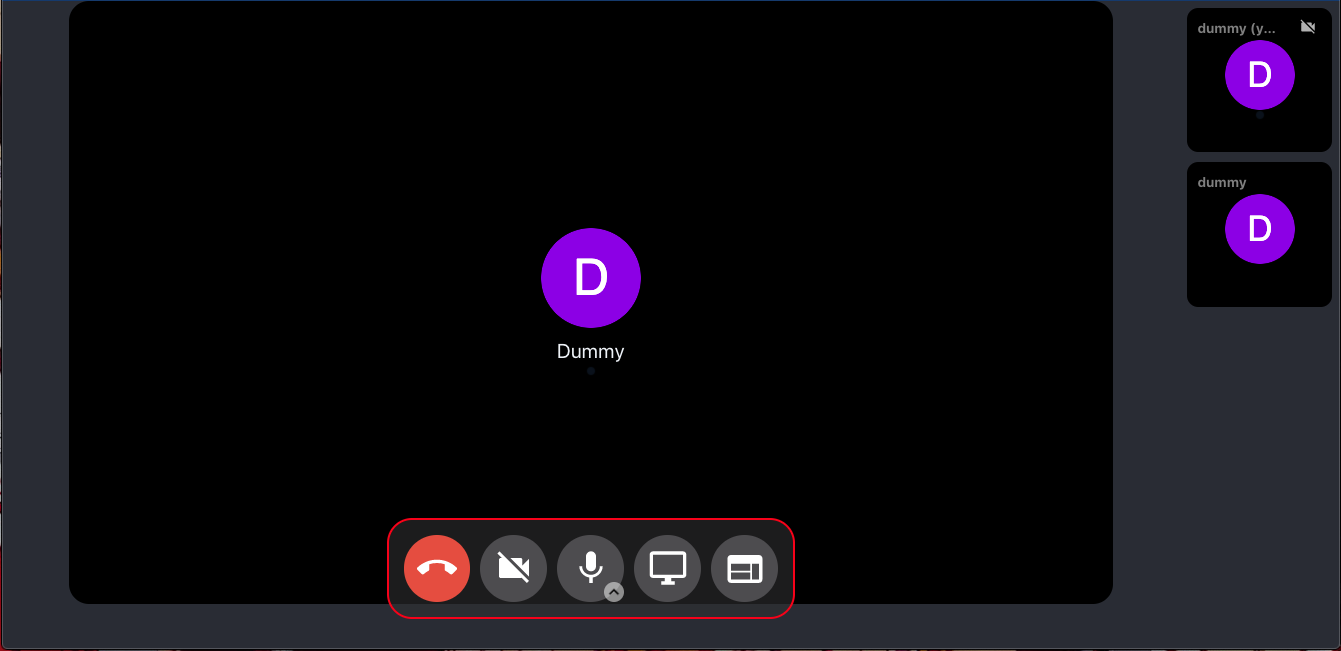

  1. custom-button-bar
    This is the container of all the buttons in calling.
#Default value
 {
  position: relative;
  display: inline-block;
  display: flex;
  justify-content: center;
  padding: 10px;
  background-color: rgba(46, 47, 48, 0.6);
  border-radius: 25px;
}

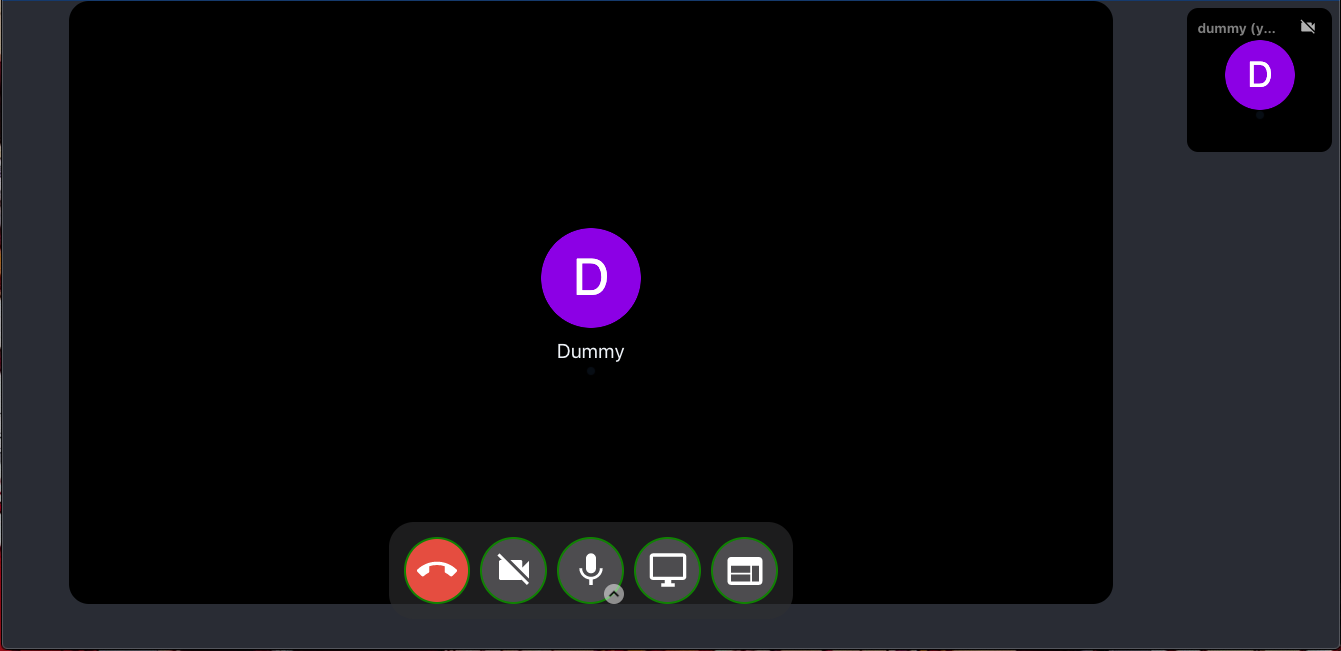

  1. custom-button
    This is the div of every button in the button bar.
#Default value

 {
  background-color: #4d4c4f;
  width: 5vw;
  height: 5vw;
  border-radius: 50%;
  line-height: 1.33;
  margin: 5px;
  outline: none !important;
  border: none;
  z-index: 5;
}

#Default value for mobile
 {
  width: 12vw;
  height: 12vw;
  border-radius: 50%;
  line-height: 1.33;
  margin: 5px;
  outline: none !important;
  border: none;
  z-index: 5;
}

Grid Mode

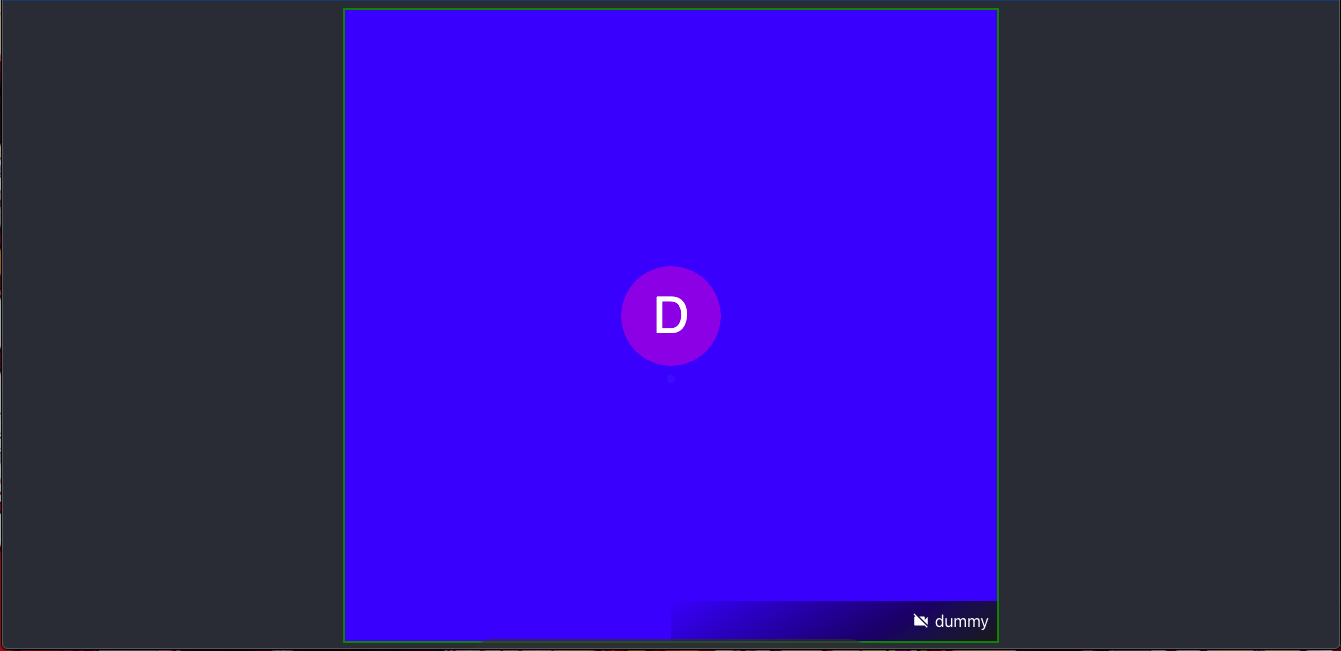

  1. custom-grid-container
    This is the container of the grid video.
#Default value
 {
  position: relative;
  display: flex;
  height: 100%;
  padding-left: 1px;
  padding-right: 1px;
  margin-left: 0.5%;
  margin-right: 0.5%;
  background-color: #000;
  justify-content: center;
  align-items: center;
}

❗️

Note

It is recommended to not pass CSS of other classes which are not listed here as it may cause some UI issues. Also resizing of the grid container is not allowed as it may affect the layout of grid mode.
