UI Components

UI Components are building blocks of the UI Kit. UI Components are a set of custom classes specially designed to build a rich chat app. There are different UI Components available in the
UI Kit Library.

1. CometChatUI

CometChatUI is an option to launch a fully functional chat application using the UI Kit. In CometChatUI all the UI Components are interlinked and work together to launch a fully functional chat on your application.

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatUI} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatUIView() {
  return (
    <View style={{flex: 1}}>
      <CometChatUI />
    </View>
  );
}

2. CometChatUserListWithMessages

The CometChatUserListWithMessages is a component with a list of users. The component has all the necessary listeners and methods required to display the user's list and shows the set of the messages/chats of the selected user

import { CometChatUserListWithMessages } from '../cometchat-pro-react-native-ui-kit';

function StackNavigator(props) {
  const Stack = createStackNavigator();

  return (
    <NavigationContainer>
      <Stack.Navigator
        headerMode="none"
        initialRouteName={"UserListWithMessages"}>
          <Stack.Screen name="UserListWithMessages" component={CometChatUserListWithMessages} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

If you want to use this as a child component, then use the below code.

import React from 'react';
import {View} from 'react-native';
import {CometChatUserListWithMessages} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatUserListWithMessagesView({navigation}) {
  return (
    <View style={{flex: 1}}>
      <CometChatUserListWithMessages navigation={navigation}/>
    </View>
  );
}

3. CometChatGroupWithMessages

The CometChatGroupWithMessages is a component with a list of groups. The component has all the necessary listeners and methods required to display the group's list and shows the set of the messages/chats of the selected group

import { CometChatGroupListWithMessages } from '../cometchat-pro-react-native-ui-kit';

function StackNavigator(props) {
  const Stack = createStackNavigator();

  return (
    <NavigationContainer>
      <Stack.Navigator
        headerMode="none"
        initialRouteName={"GroupListWithMessages"}>
          <Stack.Screen name="GroupListWithMessages" component={CometChatGroupListWithMessages} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

If you want to use this as a child component, then use the below code.

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatGroupListWithMessages} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatGroupListWithMessagesView({navigation}) {
  return (
    <View style={{flex: 1}}>
      <CometChatGroupListWithMessages navigation={navigation} />
    </View>
  );
}

4. CometChatMessages

The CometChatMessages is a component with a list of messages/chats and shows the message component header and message composer.

import React, {useEffect, useState} from 'react';
import {View} from 'react-native';
import {CometChat} from '@cometchat-pro/react-native-chat';
import {CometChatMessages} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatMessagesView({navigation}) {
  const [localUser, setLocalUser] = useState(null);
  useEffect(() => {
    var user = CometChat.getLoggedinUser().then(
      (user) => {
        console.log('user details:', {user});
        setLocalUser(user);
      },
      (error) => {
        console.log('error getting details:', {error});
      },
    );
  }, []);
  return (
    <View style={{flex: 1}}>
      {localUser ? (
        <CometChatMessages
          type={'user'}
          item={userOrGroupObject}//The object will be of user or group depending on type
          loggedInUser={localUser}
          actionGenerated={(actionType) => {
            console.log(actionType);
          }}
        />
      ) : null}
    </View>
  );
}

Parameter

Description

Type

type

Value should be string.
defines the type of chat. Its value can be user or "group".

Optional

item

Value should be Object.
The object will be of user or group depending on type.
This is an example object for user
{
hasBlockedMe: false,
blockedByMe: false,
uid: 'superhero3',
name: 'Spiderman',
avatar:
'https://data-us.cometchat.io/assets/images/avatars/spiderman.png',
lastActiveAt: 1614597611,
role: 'default',
status: 'offline',
}

Required

loggedInUser

Value should be Object.
This props takes the details of current logged in user,

Required

actionGenerated

Value should be function.
Tis is a callback function called when user perform certain actions on screen.
List of actionType are as follow:
1)groupDeleted: This is called when user deletes the group.

  1. membersUpdated: This is called when members of group are updated.
    3)messageRead : This is called when last message is read.
    4)messageComposed: is called when new message is composed.
    5)messageDeleted: This is called when message is been deleted.
    6)viewActualImage: This is called when user clicks on Image.
    7)menuClicked: This is called when the menu in header has been clicked.
    8)threadMessageComposed: This is called when new thread message has been composed
    9)blockUser: This is called when user is blocked
    10)updateThreadMessage: This is called when thread message is updated.
    11)messageEdited: This is called when a message is edited.
    12)groupUpdated: This is called when a group property has been updated.

Required

5. CometChatConversationListWithMessages

The CometChatConversationListWithMessages is a component with a list of recent conversations. The component has all the necessary listeners and methods required to display the recent conversation list and shows the set of the messages/chats of the selected recent conversation

import { CometChatConversationListWithMessages } from '../cometchat-pro-react-native-ui-kit';

function StackNavigator(props) {
  const Stack = createStackNavigator();

  return (
    <NavigationContainer>
      <Stack.Navigator
        headerMode="none"
        initialRouteName={"ConversationListWithMessages"}>
          <Stack.Screen name="ConversationListWithMessages" component={CometChatConversationListWithMessages} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

If you want to use this as a child component, then use the below code.

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatConversationListWithMessages} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatConversationListWithMessagesView({
  navigation,
}) {
  return (
    <View style={{flex: 1}}>
      <CometChatConversationListWithMessages navigation={navigation} />
    </View>
  );
}

6. CometChatUserList

The CometChatUserList is a component that displays the list of users available to chat. You can use this component within your app if you wish to display the list of users.

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatUserList} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatUserListView({navigation}) {
  return (
    <View style={{flex: 1}}>
      <CometChatUserList
        friendsOnly={true}
        onItemClick={(item) => {
          console.log(item);
        }}
        navigation={navigation}
      />
    </View>
  );
}

Parameter

Description

Type

friendsOnly

Value could be Object or Number

This property when set to true will return only the friends of the logged-in user

Default value is false

Optional

onItemClick

Value should be function
This is a callback called when a user is clicked on user list

Optional

navigation

Value should be Object.
Pass the navigation object, if you want to refresh list on focus

Optional

7. CometChatGroupList

The CometChatGroupList is a component that displays the list of groups available. You can use this component within your app if you wish to display the list of groups.

import { CometChatGroupList } from '../cometchat-pro-react-native-ui-kit';

function StackNavigator(props) {
  const Stack = createStackNavigator();

  return (
    <NavigationContainer>
      <Stack.Navigator
        headerMode="none"
        initialRouteName={"GroupList"}>
          <Stack.Screen name="GroupList" component={CometChatGroupList} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

If you want to use this as a child component, then use the below code.

import React from 'react';
import {View} from 'react-native';
import {CometChatGroupList} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatGroupListView({navigation}) {
  return (
    <View style={{flex: 1}}>
      <CometChatGroupList navigation={navigation} />
    </View>
  );
}

8.CometChatConversationList

You can use the CometChatConversationList component to display the list of recent conversations that the logged-in user was a part of.

import { CometChatConversationList } from '../cometchat-pro-react-native-ui-kit';

function StackNavigator(props) {
  const Stack = createStackNavigator();

  return (
    <NavigationContainer>
      <Stack.Navigator
        headerMode="none"
        initialRouteName={"ConversationList"}>
          <Stack.Screen name="ConversationList" component={CometChatConversationList} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

If you want to use this as a child component, then use the below code.

import React from 'react';
import {View} from 'react-native';
import {CometChatConversationList} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatConversationListView({navigation}) {
  return (
    <View style={{flex: 1}}>
      <CometChatConversationList navigation={navigation} />
    </View>
  );
}

CometChatAvatar

This is an image view customize only to display Avatar.

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatAvatar} from '../cometchat-pro-react-native-ui-kit';
export default function AvatarView({user}) {
  return (
    <View style={{flex: 1, justifyContent: 'center'}}>
      <View
        style={{
          margin: '10%',
          elevation: 5,
          backgroundColor: '#fff',
          padding: '10%',
          alignItems: 'center',
          borderRadius: 5,
        }}>
        <Text style={{fontWeight: 'bold', fontSize: 26, marginBottom: '5%'}}>
          CometChatAvatar
        </Text>
        <CometChatAvatar
          image={{uri: user.avatar}}
          borderWidth={5}
          cornerRadius={1000}
          borderColor={'#707070'}
          textColor={'#000'}
        />
        <Text style={{marginTop: '5%', textAlign: 'center'}}>
          This is an image view customize only to display Avatar.
        </Text>
      </View>
    </View>
  );
}

Parameter

Description

Type


Value could be Object or Number
This property sets the source of avatar image.

Optional

name

Value should be String
This property sets the user name in avatar.

Optional

borderWidth

Value should be Number.
This property sets the width of the component's four borders.
Default value is 1

Optional

cornerRadius

Value should be Number.
This property sets border radius of the component.
Default value is 1000.

Optional

textColor

Value should be Color.
This property sets the text color of component.
Default value is black

Optional

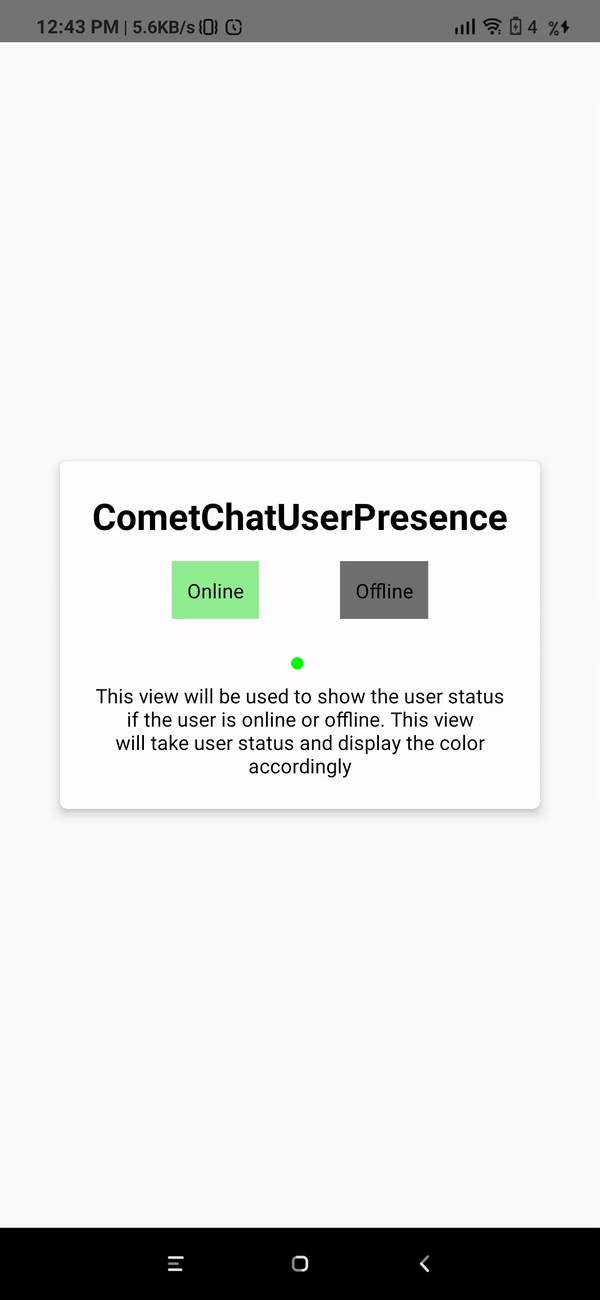

CometChatUserPresence

This component will be used to show the user's online or offline status. This component will show the color based on the user's status.

import React, {useState} from 'react';
import {View, Text, TouchableOpacity} from 'react-native';
import {CometChatUserPresence} from '../cometchat-pro-react-native-ui-kit';
export default function CometChatUserPresenceView({user}) {
  const [status, setStatus] = useState(user.status);
  return (
    <View style={{flex: 1, justifyContent: 'center'}}>
      <View
        style={{
          margin: '10%',
          elevation: 5,
          backgroundColor: '#fff',
          padding: '5%',
          alignItems: 'center',
          borderRadius: 5,
        }}>
        <Text style={{fontWeight: 'bold', fontSize: 26, marginBottom: '5%'}}>
          CometChatUserPresence
        </Text>

        <View
          style={{
            flexDirection: 'row',
            justifyContent: 'space-evenly',
            width: '100%',
          }}>
          <TouchableOpacity
            onPress={() => setStatus('online')}
            style={{
              justifyContent: 'center',
              alignItems: 'center',
              padding: 10,
              backgroundColor: 'lightgreen',
            }}>
            <Text>Online</Text>
          </TouchableOpacity>
          <TouchableOpacity
            onPress={() => setStatus('')}
            style={{
              justifyContent: 'center',
              alignItems: 'center',
              padding: 10,
              backgroundColor: '#707070',
            }}>
            <Text>Offline</Text>
          </TouchableOpacity>
        </View>
        <View style={{position: 'relative'}}>
          <CometChatUserPresence
            status={status}
            borderWidth={0.5}
            borderColor={'red'}
            cornerRadius={0}
          />
        </View>
        <Text style={{marginTop: '15%', textAlign: 'center'}}>
          This view will be used to show the user status if the user is online
          or offline. This view will take user status and display the color
          accordingly
        </Text>
      </View>
    </View>
  );
}

Parameter

Description

Type

borderWidth

Value should be Number
This property sets the width of the component's four borders
Default value is 1

Optional

borderColor

Value should be Color
This property sets the border colour of the component.
Default value is #AAA

Optional

cornerRadius

Value should be Number.
This property sets border radius of the component Default value is 4.5

Optional

status

Value should be String
Takes the status of user

Optional

CometChatBadgeCount

The CometChatBadgeCount component can be used to show an unread count. You can use it in different scenarios according to their use case.

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatBadgeCount} from '../cometchat-pro-react-native-ui-kit';
export default function CometChatBadgeCountView() {
  return (
    <View style={{flex: 1, justifyContent: 'center'}}>
      <View
        style={{
          margin: '5%',
          elevation: 5,
          backgroundColor: '#fff',
          padding: '10%',
          alignItems: 'center',
          borderRadius: 5,
        }}>
        <Text style={{fontWeight: 'bold', fontSize: 26, marginBottom: '5%'}}>
          CometChatBadgeCount
        </Text>
        <View>
          <CometChatBadgeCount count={1} />
        </View>
        <Text style={{marginTop: '5%', textAlign: 'center'}}>
          The CometChatBadgeCount component can be used to show an unread count.
          You can use it in different scenarios according to their use case.
        </Text>
      </View>
    </View>
  );
}

Parameter

Description

Type

count

Value should be String.
This property sets the count on the badge

Optional


Did this page help you?
